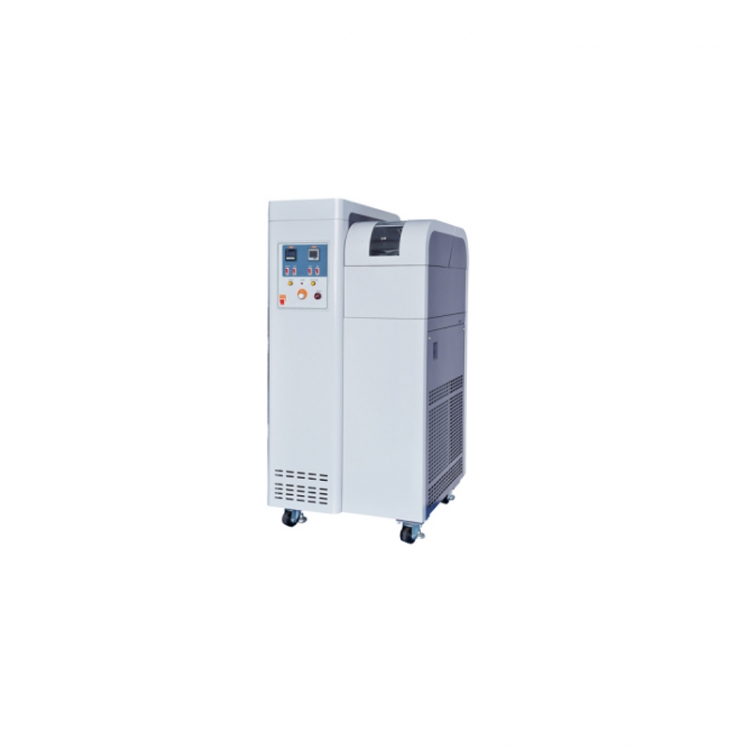

Brittleness Temperature Tester HP01

HP01 Brittleness Temperature Tester is used to determine the brittleness characteristic during low temperature testing for wire jacket and vulcanized rubber. Sample is impacted by impact head at a linear speed of 2±0.2m/s after sample fixed onto the test device is soaked into a medium at low temperature for 5 minutes. And then check whether the sample appears cracks, crevices, small holes and fragments at the lowest temperature.

Key Specifications

Support Services

UTS provide the complete support for the full life of your HP01 Brittleness Temperature Tester:

1 English Manual

2 Certificate of Quality

3 Remote Online Support

4 Breakdown Support

5 Applications Support

6 12 months warranty

7 CE, ISO 17025 Certificate

8 7 * 24 Service

9 Spare Parts

10 Training

11 Installation

Test Principle

Adopts two-segment compressor to reduce temperature rapidly, the lowest temperature is up to -70℃ (You may add liquid nitrogen to the heat exchanger if you want to test at a temperature lower than -70°C. The lowest temperature is up to -120°C.). The temperature is highly controllable. The liquid heat transfer medium in the low temperature tank can be stirred by the stirring motor so as to obtain a better uniform temperature. 4 units of samples are able to be tested. Automatic rotary locating fixtures impact each group of samples and check the lowest temperature when brittle failure occurs.

Standards

ASTM D746 :2004-A, ASTM-D746 :2004-B, BS 903 A25:1992, GB/T15256-94, GB/T5470-2008(B Type), ISO 812-91, ISO 974:2000, JIS C3005-2000, JIS K 6723-1995, JIS K7216-1980 A Type, JIS K7216-1980(B Type), ASTM D2137-05

HP01 Brittleness Temperature Tester is applicable to the determination of:

wire jacket and vulcanized rubber.
