Model :
M006ABrand :
UTSCertificate :
CE, ISO 17025, ISO 9001Lead Time :
3-25 DaysPayment :
TT, L/COriginal Region :
ChinaPort Of Dispatch :
China PortStandards :

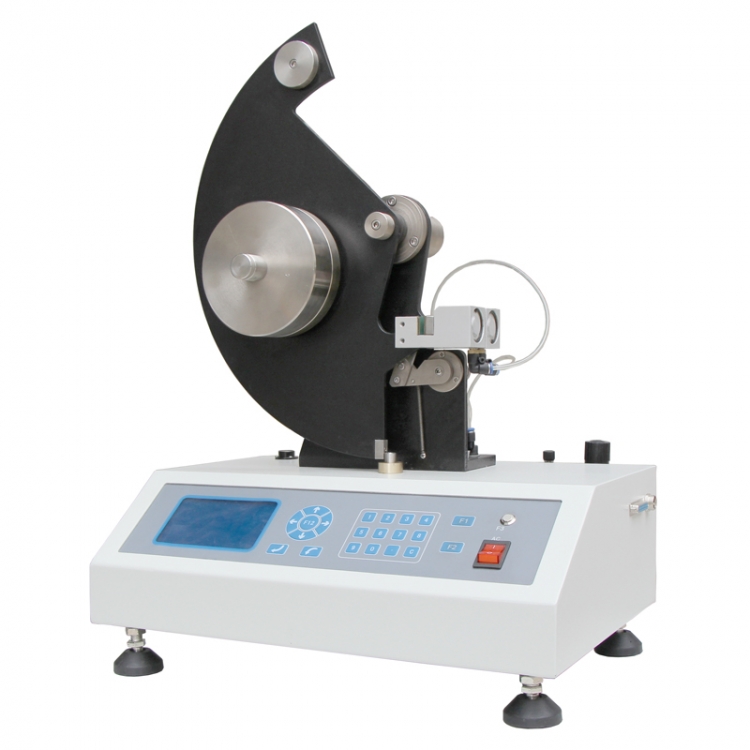

GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734M006A Electronic Elmendorf Tearing Tester is to determine the tearing resistance strength (Elmendorf method) for various textiles. Also available for thick paper, plastic cloth and electrical insulating tapes.
Three interchangeable pendulums ranging from 16,000 to 64,000 Millinewtons (mN) can be selected separately for multiple test method compliance.

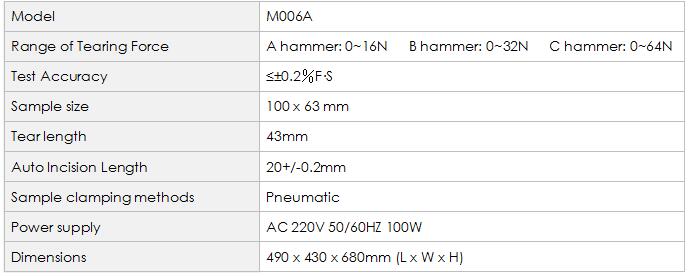

Key Parameters
Standards
GB/T 3917.1 FZ/T60006 FZ/T75001 ISO1974/9290 ASTM D1424/5734
1.Microcontrol system control, support online communication.
2.Comes with the functions of automatic test, calculate and analyze results, upload test data and print out test report.
3.Chinese and English operational interface.
4.Test units (N, gf, cN and lbs.)can be chose and automatically convert based on different standards.
5.Pneumatic clamp sample, auto cut sample.
M006A Electronic Elmendorf Tearing Tester is applicable to the determination of:
thick paper, plastic cloth and electrical insulating tapes.
Previous product
Digital Elemendorf Tear Tester M006BNext product :
Elmendorf Tear Tester Manual M005PARTERNERS
