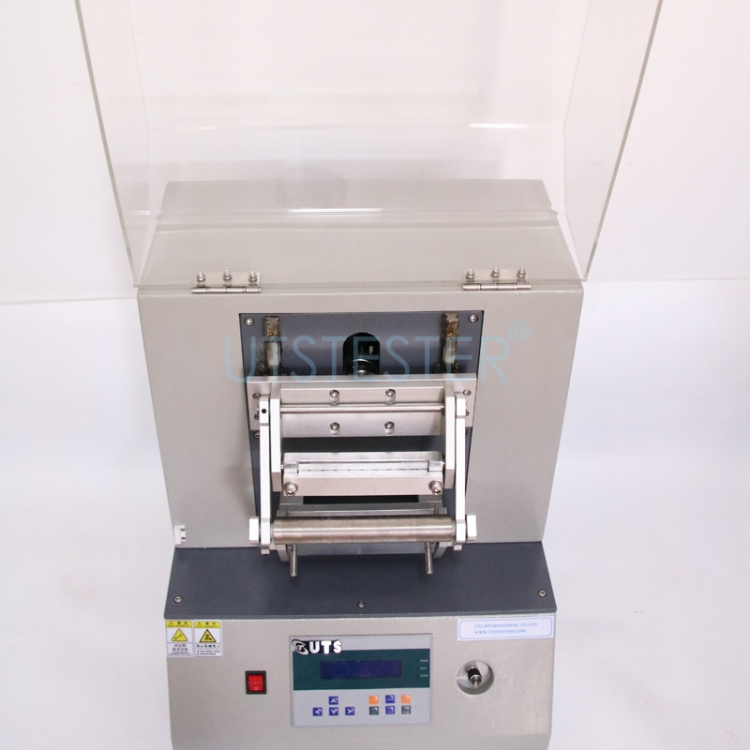

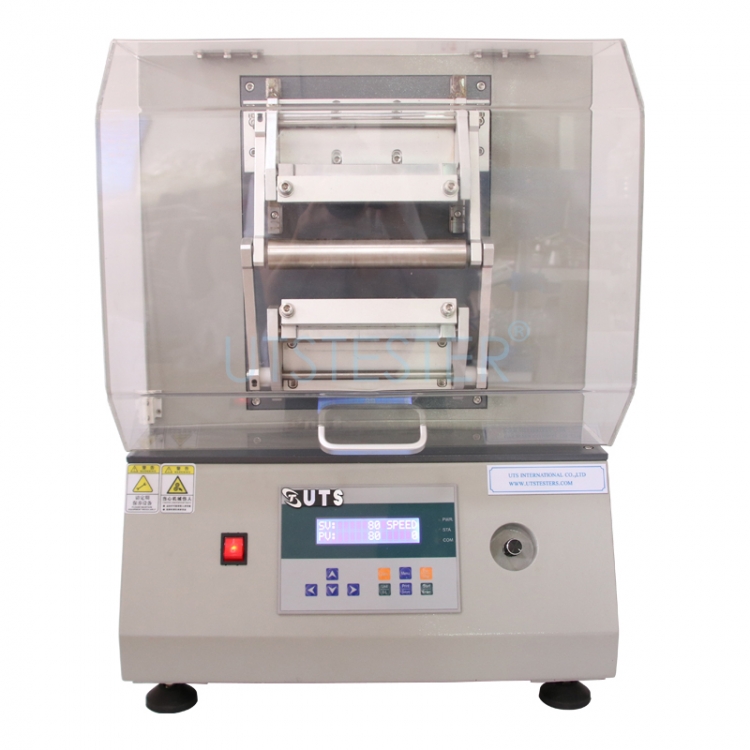

H018 EN Sole Flexing Tester is designed to do repeated flexing test for shoe soles.

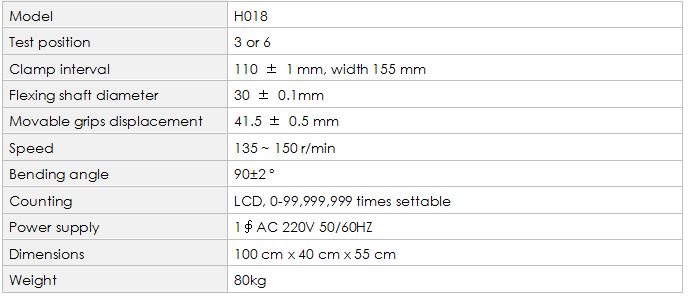

Key Parameters
Test Principle

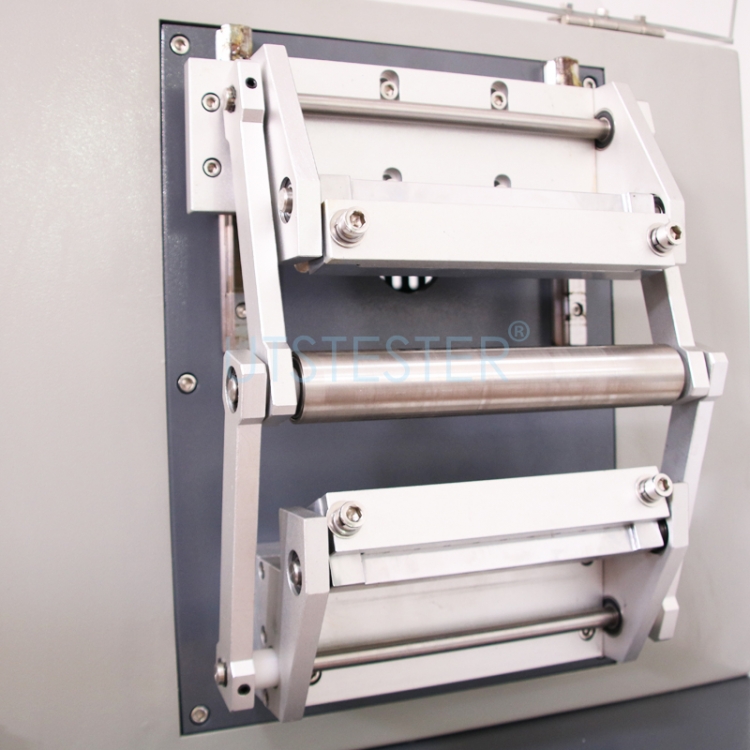

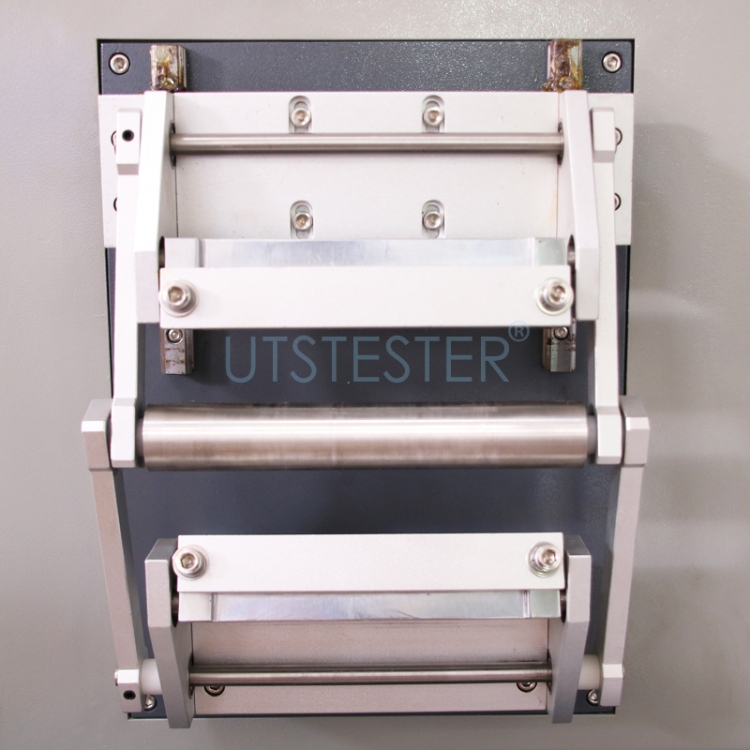

Mount samples between two clamps and let the cut of sole pass through flexing shaft. Check the cutting length of increasing cracks after repeatedly flexing at a certain of angle and times. This machine has the returning function which is convenient and save time.
Standards
QB/T 2885-2007 ISO-17707 SATRA TM161
1. Two structures including vertical and horizontal column optional
2. 3 and 6 working positions are optional.

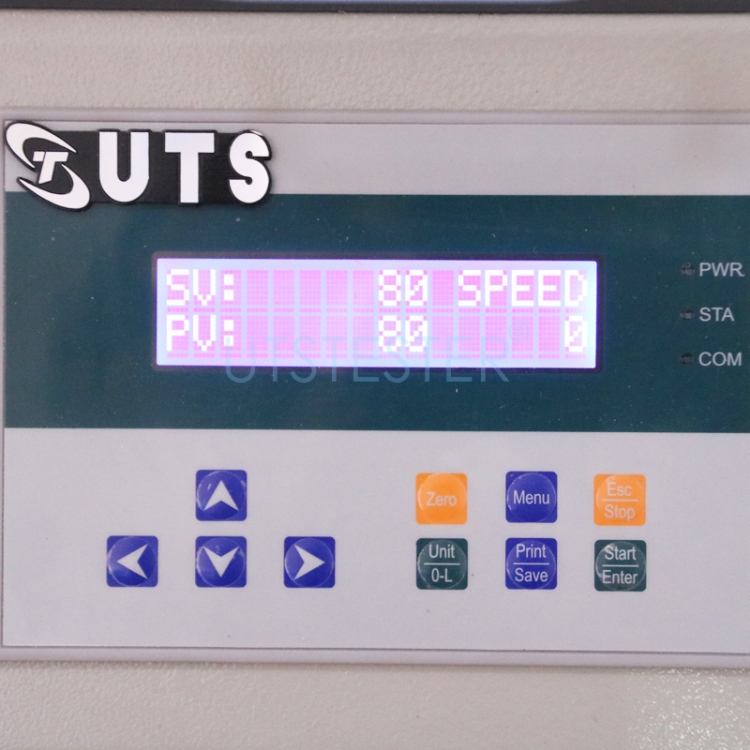

3.Flexing time can be set and real flexing times displayed on control panel
4.Machine stop working and counter stop to count automatically if preset test times reached.
5.With inching return function to install sample easier.
H018 EN Sole Flexing Tester is applicable to the determination of:
all all kinds of shoe soles.
