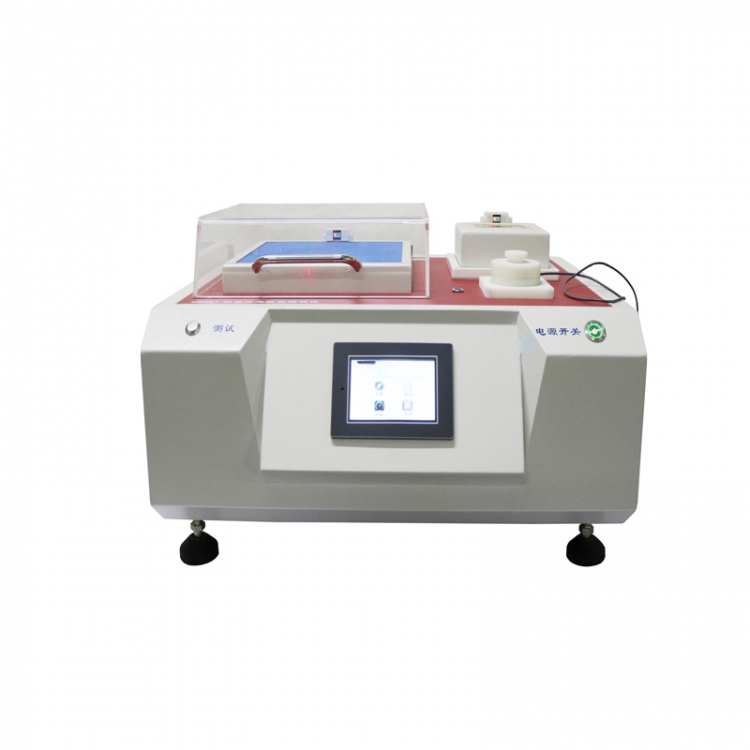

The fabric cooling performance tester is a judgment about coldness and warmth formed in the human brain by the temperature stimulation of the fabric after the fabric comes into contact with the human skin. When the fabric comes into contact with the skin, due to the temperature difference, there will be a difference between the fabric and the skin. Heat exchange causes the temperature of the skin to increase or decrease; the form of heat exchange between the fabric and the skin is mainly heat conduction, and the influence of thermal radiation and natural convection inside the fabric is very small and can be ignored; under normal circumstances (except when the ambient temperature is higher than (excluding skin temperature), the skin temperature is higher than the ambient temperature, so the skin temperature often drops after the fabric comes into contact with the skin.
Used to test the coolness of pajamas, bedding, fabrics, and underwear.
Standard
GB/T 35263-2017
Features
1. High-precision temperature sensor ensures the accuracy of temperature measurement.
2. Automatic heating plate preheating function at startup to save testing time.
3. After the test is completed, the data is automatically saved, and the report calculation and analysis results can be viewed, and the test report can be printed.
4. Touch screen control panel and clear image interface provide testers with more convenient and faster operations.
5. All data and statistical results can be freely viewed in the host computer.
6. Using 32-bit ARM processor, high sampling frequency and high testing accuracy.
7. Infrared detection, you can choose manual/automatic testing. Automated testing eliminates errors caused by human testing.
Key Parameters
Model
|
M125
|
Temperature accuracy
|
0.01℃
|
Test accuracy
|
0.001J/(cm².s)
|
Test time
|
1~99s can be set
|
Heating temperature range
|
20~40℃
|
The area of the thermal detection plate
|
9cm², and the pressure is 0.9±0.09N/cm²
|
Test bench size
|
220mm long and 220mm wide
|
Overall dimensions
|
550×590×270mm
|
Weight
|
30kg
|
Power supply
|
AC220V 50Hz 100W
|
