Hydraulic Bursting Strength Tester M007A

M007A Hydraulic Bursting Strength Tester  is to adopts hydraulic method to determine the burst strength and burst expansion property for various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.

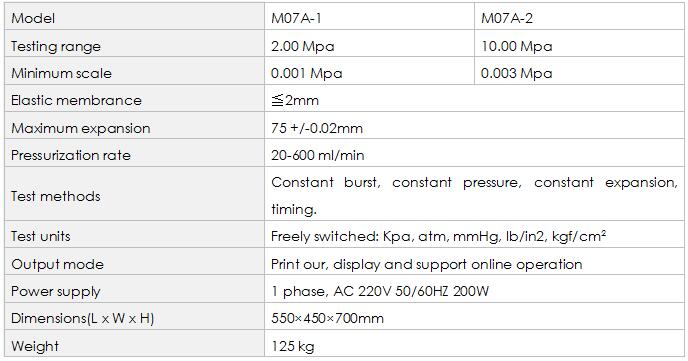

Key Parameters

Principle

Clamp sample on the extensible diaphragm via round sample holder. Conduct air pressure underneath diaphragm to make diaphragm and sample expand. Under constant speed and adding pressure until sample burst, so as to measure the burst strength and burst expansion.

Standards

ISO 13938-1, GB / T 7742, FZ/T 60019, FZ/T 01030, BS 4768, Woolmark TM29, WSP 30.1, JIS L 1018.6.17,   ASTM D 3786, etc

1.Adopts hydraulic method accorded with international standards. Multiple test head can be replaced.

2.Microprocessor control, auto burst test, auto calibration and data processed.

3.Color touch screen interface with English and Chinese menu operation.

4.Burst expansion up to 75mm

5.Test area equipped with lighting system.

6.Various test area optional and easy for switch.

7.Equipped with high transparent organic glass test cover and built-in LED lamp lighting.

8.Auto inductive burst system equipped which is sensitive and reliable.

9.AC Servo drive system equipped which has the advantages of low noise when running, wide adjusting and applicable range.

10.Comes with auto storage and printing function. Support online communication.

11.Available with 4 test methods: constant burst, constant pressure, constant expansion, timing.

12.Pneumatic clamping sample system to fix sample without slip in testing.

M007A Hydraulic Bursting Strength Tester is applicable to the determination of:

various textiles, including knitted fabric, woven fabric and non-woven fabric, laminated fabric under standard or wet condition.
