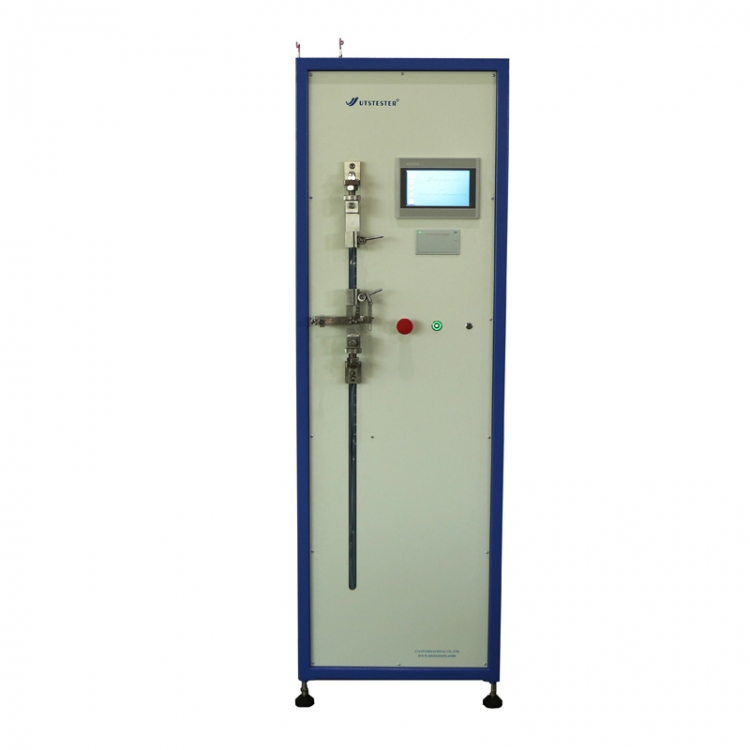

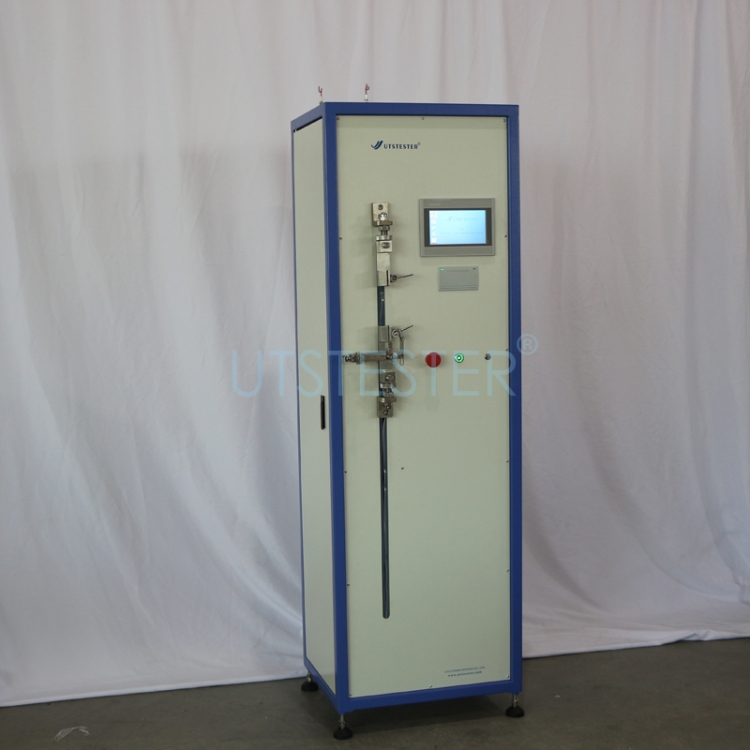

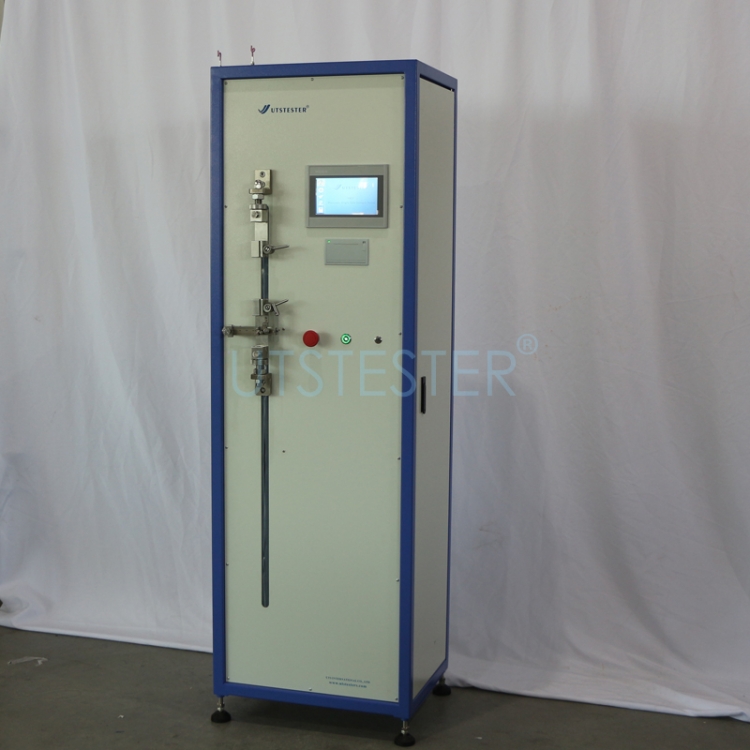

To determine the breaking load and extension for fiber pure spinning or blended yarn and single yarns made from cotton, wool, hemp, silk, chemical fiber, core yarn, to make record and statistics and print out test results.
Features
1.Able to preset tensile force.
2.Single yarn made of cotton, wool, jute, core-spun yarn etc can be tested.
3.Controlled by mictocomputer, displayed by LCD, printer ourputs reports.
4.Report, diagram can be printed out by printer.
5.Desktop structure, equip with high precision load sensor system, easy operated and stable.
6.Can be connected with computer.
Standards
GB/T14344 GB/T3916 ISO2062 ASTM D2256
Key Specifications
Model
|
Y001D
|
Testing Range
|
0-3000cN 0-5000cN 0-100N 0-300N
|
Tensile Speed
|
50~1000mm/min
|
Precision of Tensile Speed
|
±2%
|
Load Accuracy
|
≤0.2%F·S
|
Effective stroke
|
800mm
|
Clamping distance
|
50~500mm, digital setting
|
Pre-tension
|
0-150cN
|
Power supply
|
Ac 220V±10% 50Hz 0.25Kw
|
Force unit
|
N, Kgf,1b, in, cN can be switched freely.
|
Dimensions
|
520×400×1600mm(L x W x H)
|
Weight
|
60kg
|
Working mode
CRE(constant rate of elongation), Microcomputer control, LCD English display, test report can be printed out.

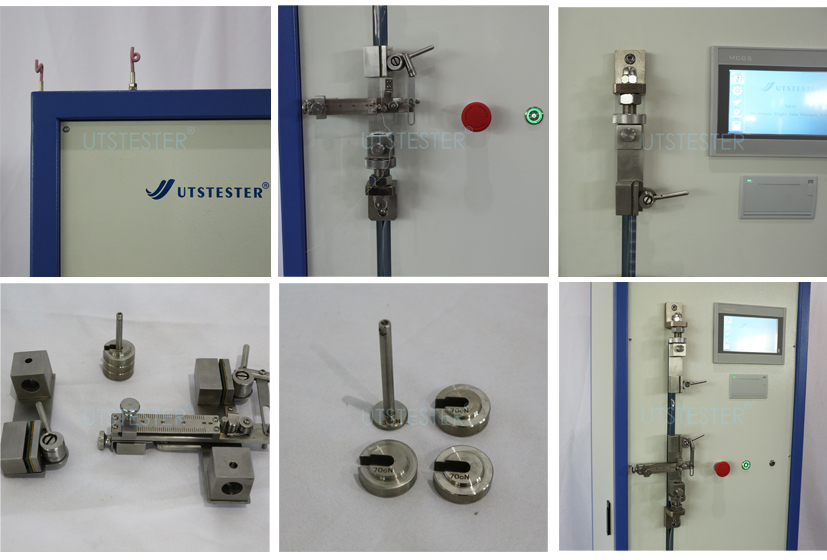

Demonstration
Materials To be Tested
